DESMI Triple Screw Pumps K-Series

General duty screw pump in nodular cast iron.

Compact and robust design in a number of variants makes it suitable for multiple applications.

Request Quote

K Series benefits

Low maintenance costs
High efficiency and long service life
Low noise and vibration
Low NPSH values

Variants

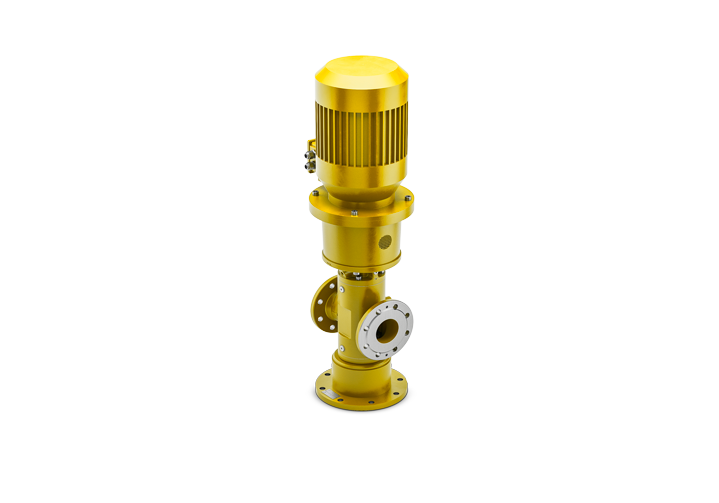

KV – vertical installed

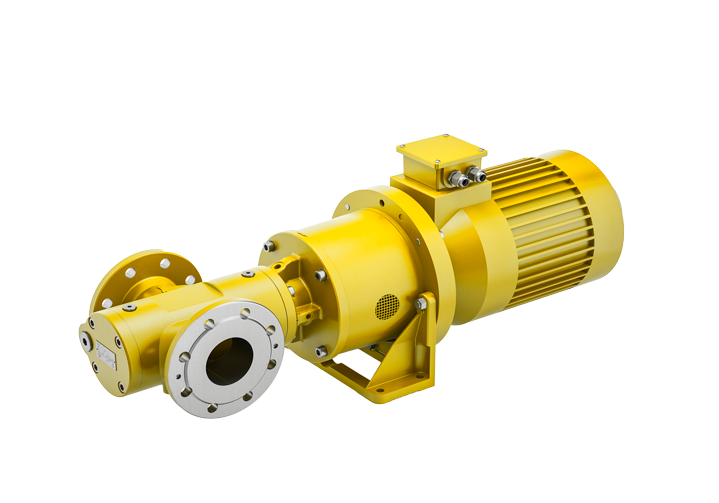

KF – horizontal with bracket

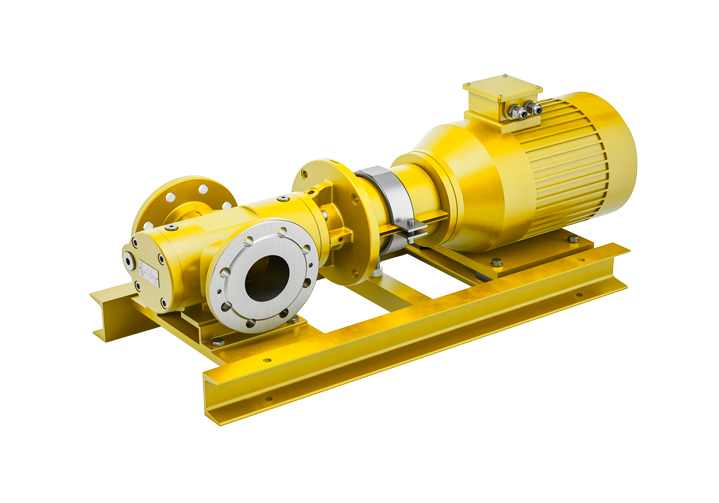

KH - horizontal at baseplate

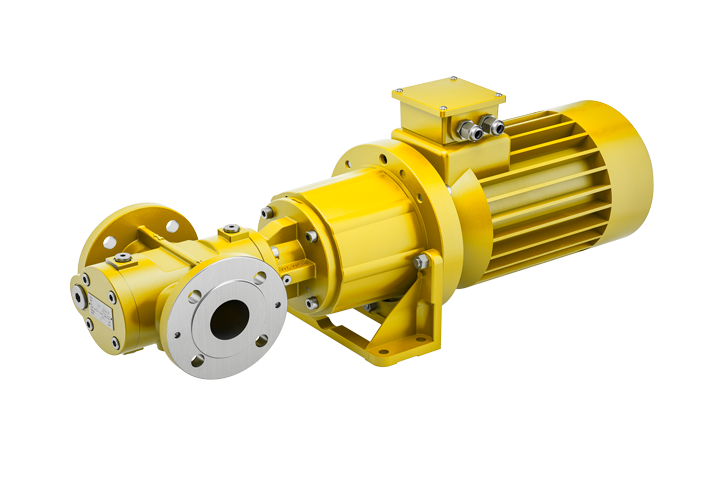

KF/KV - Mag Drive - vertical and horizontal
magnetic coupling option

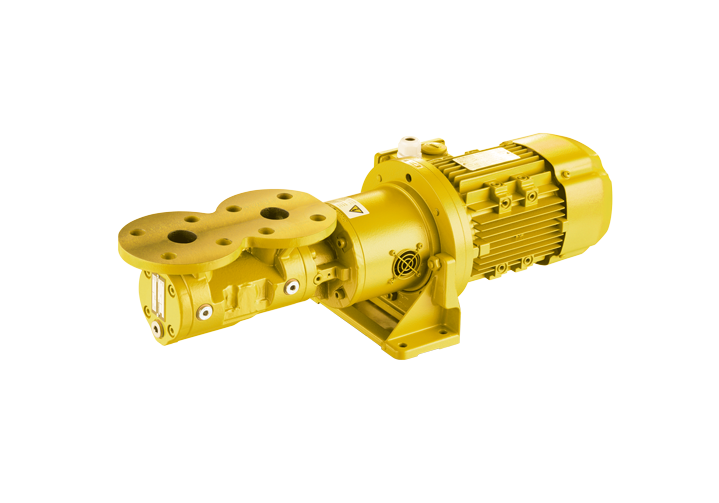

KFT – horizontal installed with
top flange

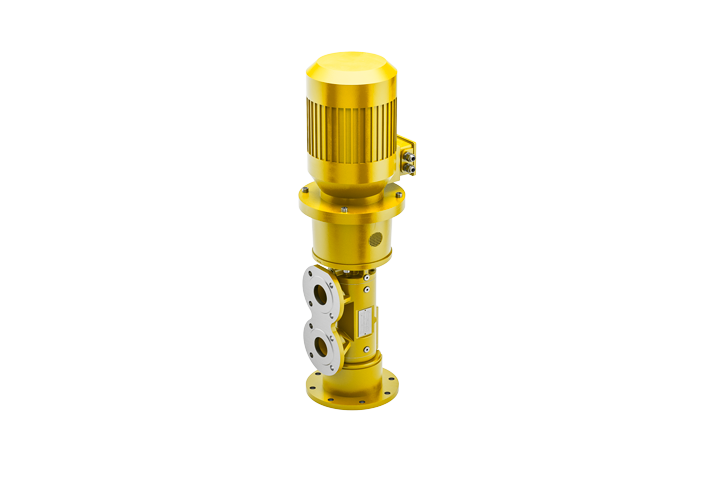

KVT – vertical installed with top flange

Applications

Triple Screw Pump - K Series
Capacity range	Up to 174 m³/h / 766 gpm (at 1450 rpm)
Speed	Up to 3600 rpm
Differential pressure	Up to 16 bar / 232 psi
Viscosity range	Up to 10,000 cSt
Temperature	Up to 180°C / 365°F
Motor	Standard and Ex motor
Pump medium	For clean, non-abrasive liquids and clean oil. Fuel, diesel, gas, and lube oil

Manuals

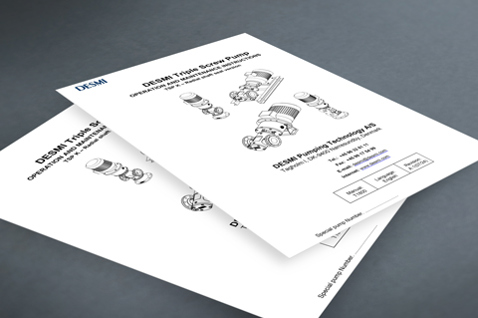

DESMI Triple Screw Pump – K – Rad. Seal (T1800)

English

English

Download

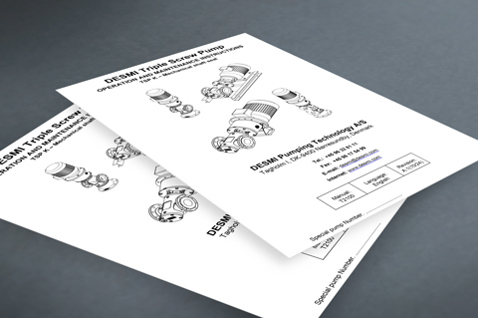

DESMI Triple Screw Pump – K – Mech. seal (T2100)

English

English

Download

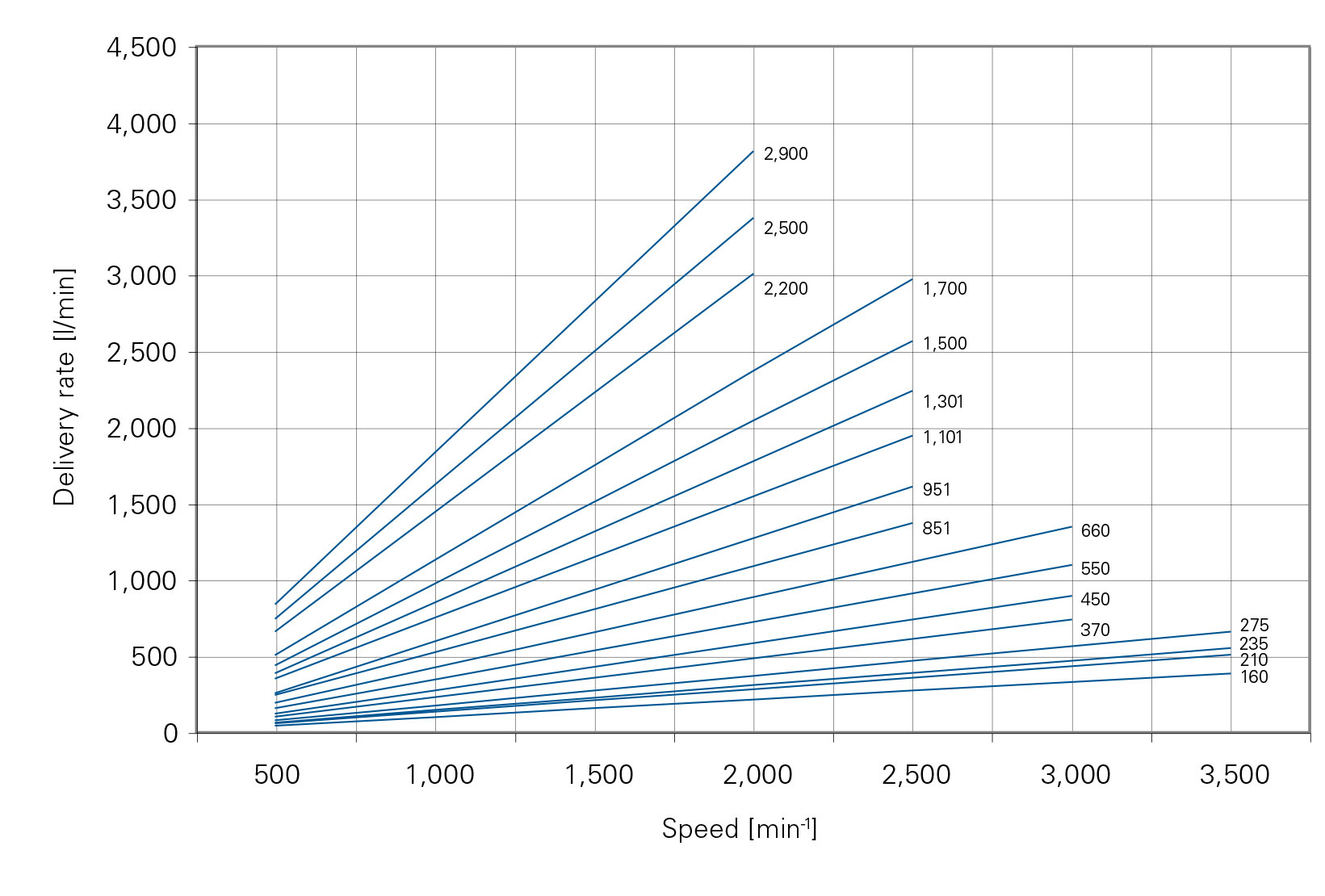

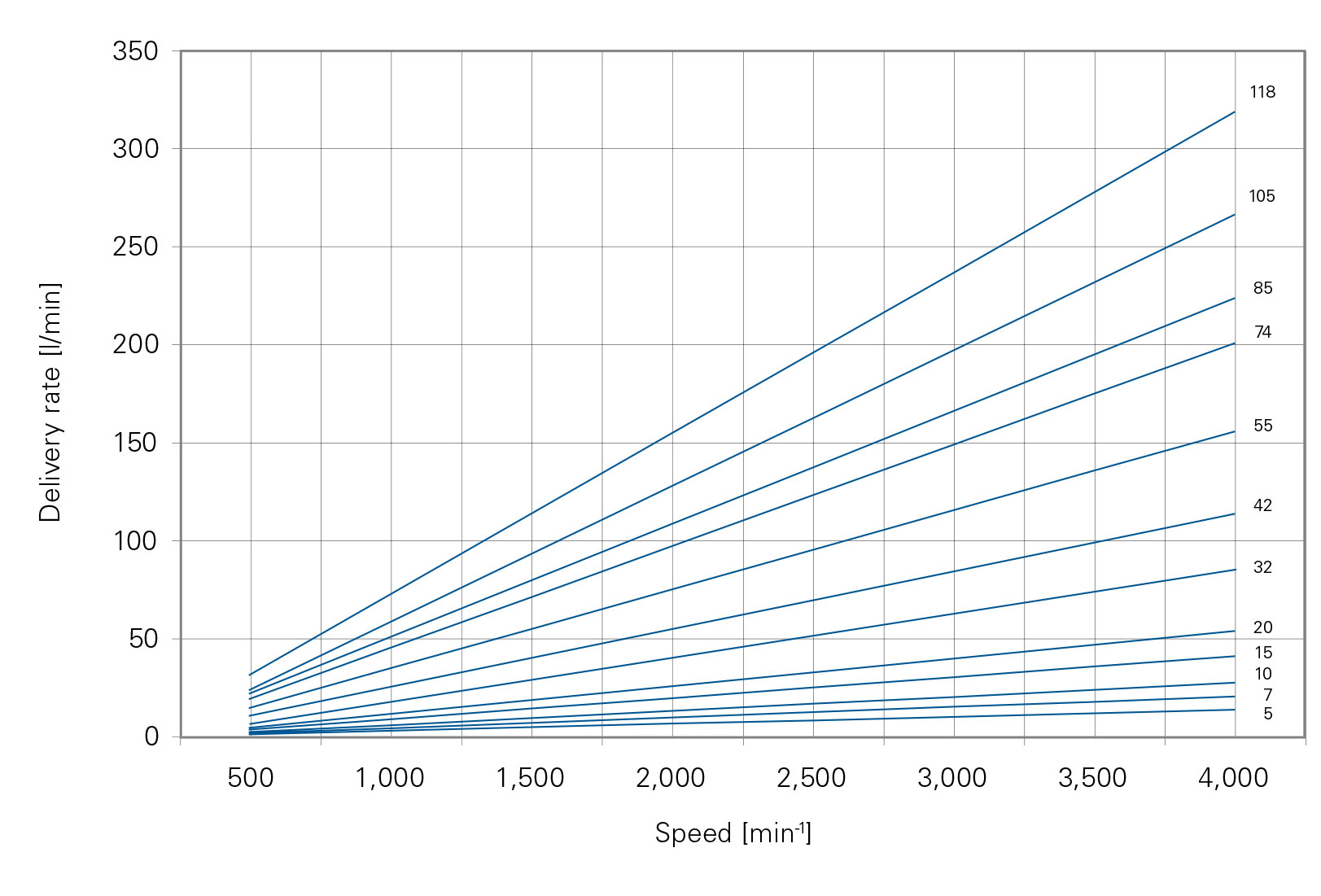

Pump curve

JPG

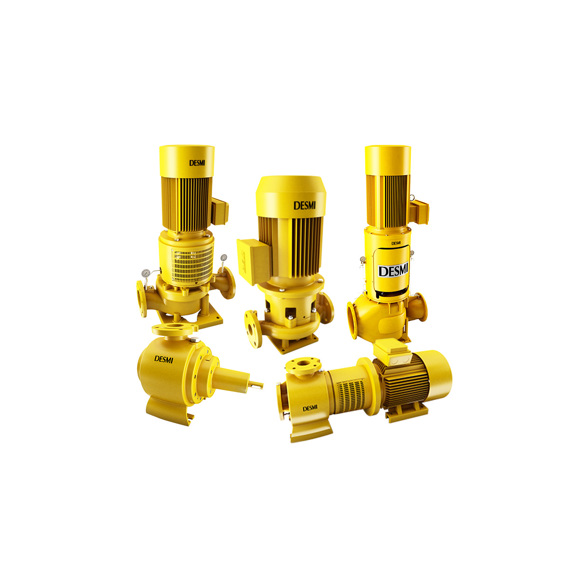

The range of centrifugal pumps is made to meet the requirements of a wide array of different applications. Be it district heating, cooling, HVAC, fire-fighting or perhaps pumps for the engine room of a maritime vessel, a centrifugal pump is often the ideal choice.
